’58 PAF

’58 PAF – The Quintessential Vintage Clone

The ’58 PAF captures the legendary sound most players associate with the classic late-’50s humbucker. Articulate, balanced, and unmistakably vintage in both tone and feel.

The Sonic Profile

• Airy top end with a natural, sweet woodiness.
• Complex, 3D midrange rich in harmonic bloom.
• Defined low end that stays clear and never gets muddy.

The Machine-Wound Magic

Vintage ’50s PAFs weren’t wound by hand, they were wound on industrial machinery. To capture that authentic character, our winding patterns are meticulously modeled on the legendary Leesona 102 for the screw coil and a period-correct slug-coil winder.

This precise mechanical replication creates subtle variations and a mild coil offset between the two coils. The result? Exceptional clarity, touch-sensitivity, and perfect vintage consistency across every set we ship.

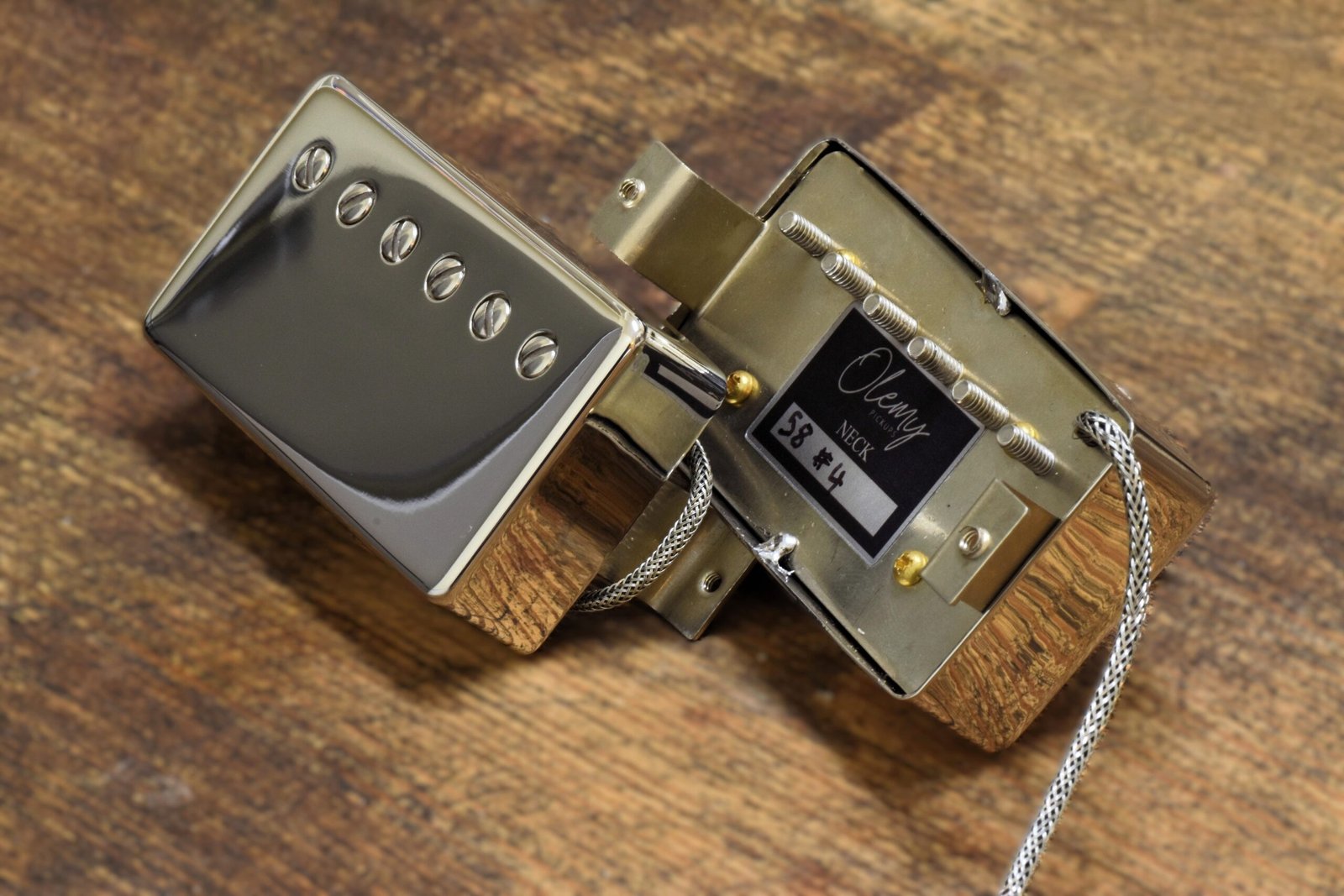

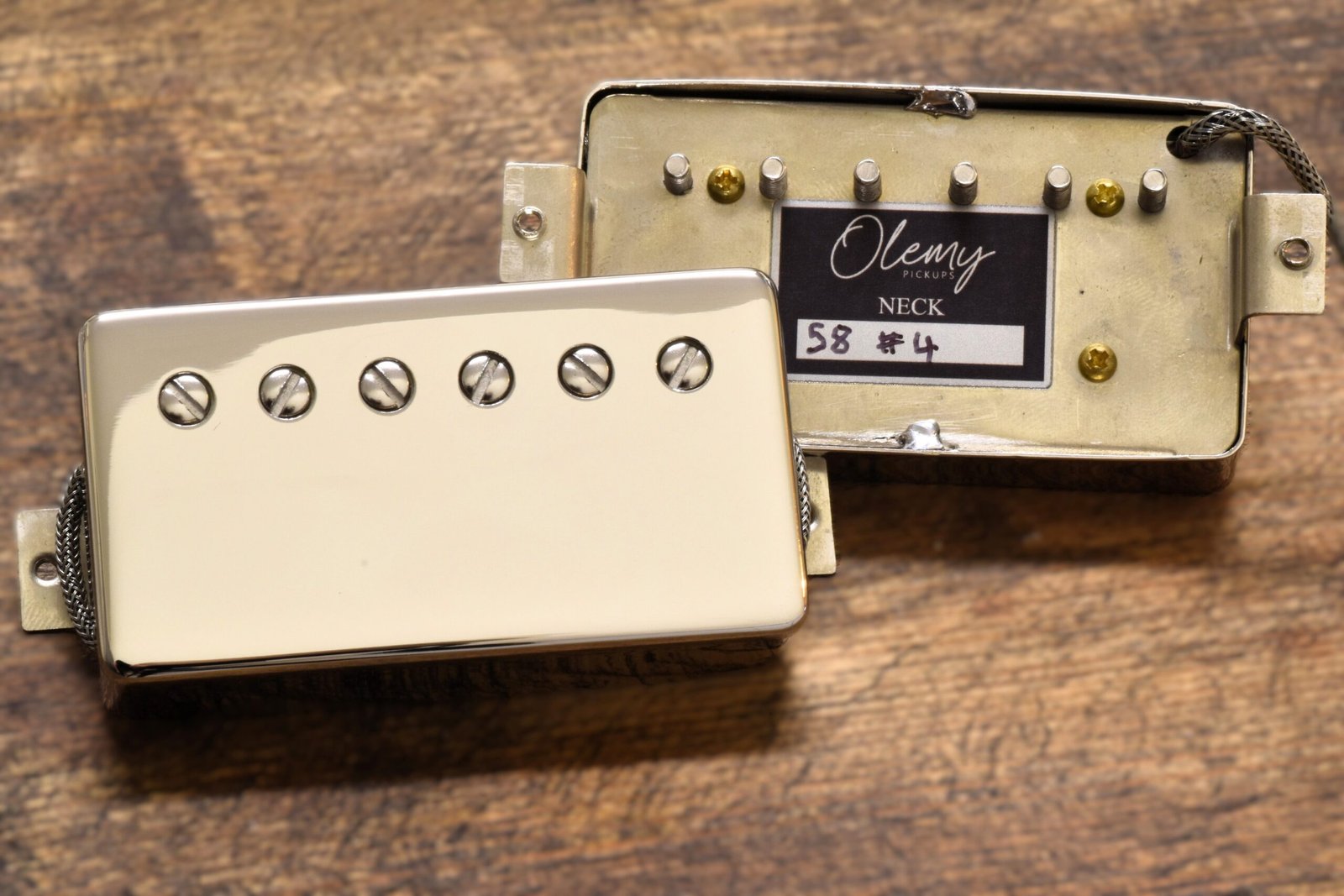

Period-Accurate Construction

Every single component follows strict vintage specifications to reproduce the exact behavior of the originals:

• Bobbins & Wire: 42 AWG plain-enamel wire wound onto authentic butyrate bobbins.
• The Steel: Low-carbon steel screws and slugs to preserve the sweet high end.
• Baseplates & Covers: Pure nickel-silver, never copper-plated or brass, for maximum transparency.
• The Core: UK-cast Alnico II magnets for that “played-in” feel, gentle compression, and musicality.
• The Details: True maple spacers and brass bobbin screws complete the assembly.

Engineered Specifications (Measured at 1 kHz)

• Bridge: 8.0 kΩ | 4.75 H | 4.28 nF
• Neck: 7.4 kΩ | 4.08 H | 4.93 nF

Engineered the exact way they used to be. For players who still care how tone is made.

Not quite the flavour you’re looking for?

The ’58 is our quintessential PAF. If you want to tweak this baseline vintage tone, explore our other historical eras:

• For more open, low-output clarity: See the ’57 PAF (Underwound & scatter-patterned)
• For smooth highs & thicker mids: See the ’59 PAF (No-offset Leesona pattern, ~8.3k)
• For more immediate bite & punch: See the ’60 PAF (’58 offset pattern with Alnico V)
• For the legendary “Greeny” blues tone: See the PG PAF (Featuring the iconic, magnetically out-of-phase middle position)
